FRP Grating
Fiber Reinforced Polymer (FRP) grating—also known as FRP grating plates—is a sheet-like material featuring a grid-like structure with numerous open spaces. It is manufactured through a specialized composite process utilizing glass fibers as the reinforcing material and unsaturated polyester resin as the matrix. FRP grating serves as a structural material and is widely employed in corrosive environments for applications such as flooring, trench covers, platforms, ship decks, stairways, and walkways. Its key characteristics include corrosion resistance, flame retardancy, non-magnetic and insulating properties, vibrant aesthetics, and availability in a wide variety of styles and configurations.
I. Characteristics of FRP Grating:
1. Lightweight: The specific gravity of FRP is approximately 1.8; this is merely one-quarter that of steel and one-third lighter than aluminum.
2. High Strength: FRP grating plates are fabricated using a cross-weaving technique where individual rods are bundled together and layered upon one another, resulting in excellent load-bearing capacity and superior structural integrity.
3. Corrosion Resistance: By selecting specific resin types tailored to requirements, the material can be endowed with exceptional resistance to corrosion from a wide range of gaseous and liquid media—including acids, alkalis, organic solvents, and salts.
4. Non-magnetic and Non-conductive: It possesses excellent electrical insulation properties.
5. Long Service Life: Typically, the material remains serviceable for twenty years without requiring maintenance; consequently, its overall economic efficiency is significantly superior to that of carbon steel.
6. High Safety Performance: The surface can be treated with various anti-slip finishes. Furthermore, its excellent insulation and flame-retardant properties make it a safe choice for use in flammable or explosive environments, thereby helping to minimize the risk of accidents.
7. Comfortable Working Surface: Due to its inherent elasticity, the material helps alleviate strain on workers' legs and backs.
8. Aesthetic Appeal: The material can be colored in any shade according to user specifications. Additionally, the grid surface is smooth and easy to clean.
II. Applications of FRP Grating:
Operating platforms, equipment platforms, drilling platforms, stair treads, ramps and walkways, bridge walkways, railway crossover walkways, pedestrian overpasses, car wash drainage grids, fencing, equipment safety barriers, airport lighting enclosures, scaffolding, filter screens, ventilation grilles, decorative grilles, washing racks, corrosion-resistant shelving, sewage floor covers, cable trench covers, insulated work platforms, drainage ditch covers, ship decks, mooring docks, etc.
III. FRP Grating Styles:

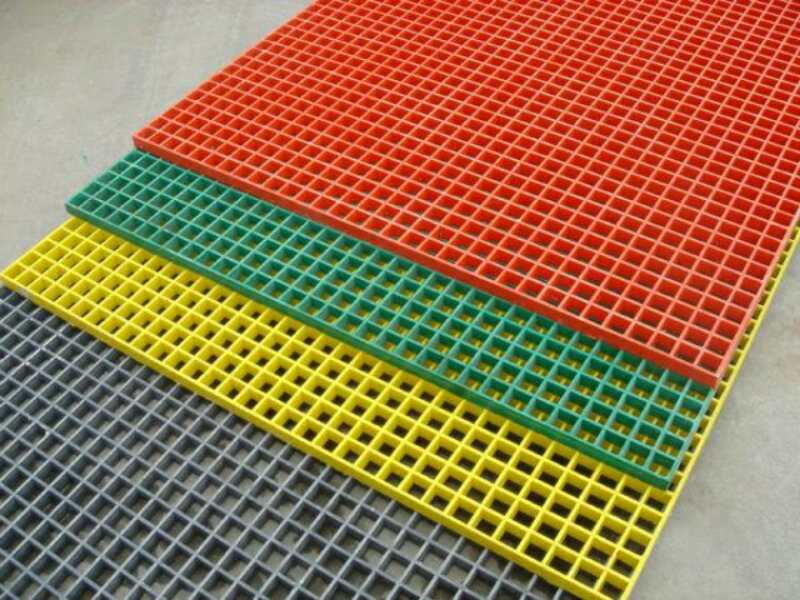

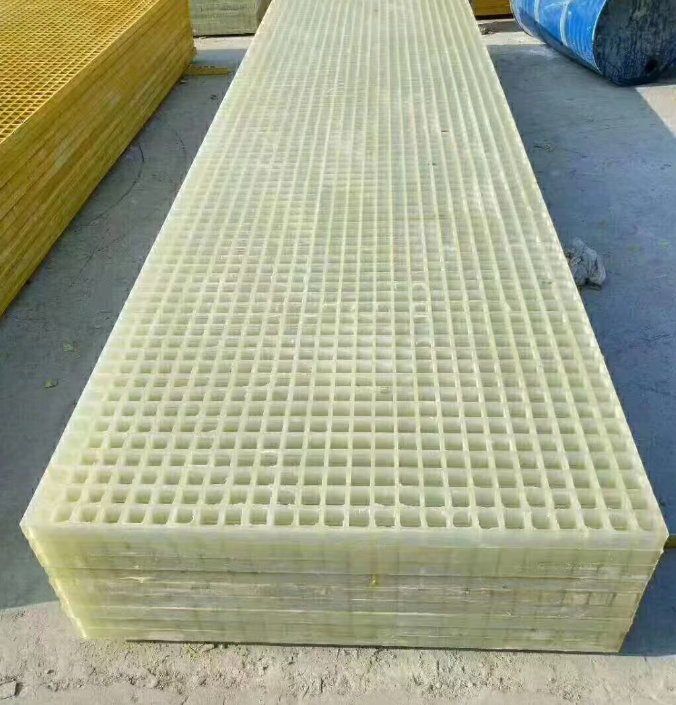

1. Single-layer Mesh Style
2. Double-layer High-density Mesh Style
3. Anti-slip Grit Surface Style
4. Anti-slip Patterned Cover Plate Style
IV. FRP Grating Specifications and Models:
1220 × 3660 × 25mm
1220 × 3660 × 30mm
1220 × 3660 × 38mm
1220 × 3660 × 50mm
Colors: Gray, Yellow, Green, etc.
The above represent our standard models; colors can be customized. Please feel free to contact our company at any time if you require products with other specifications or models.
